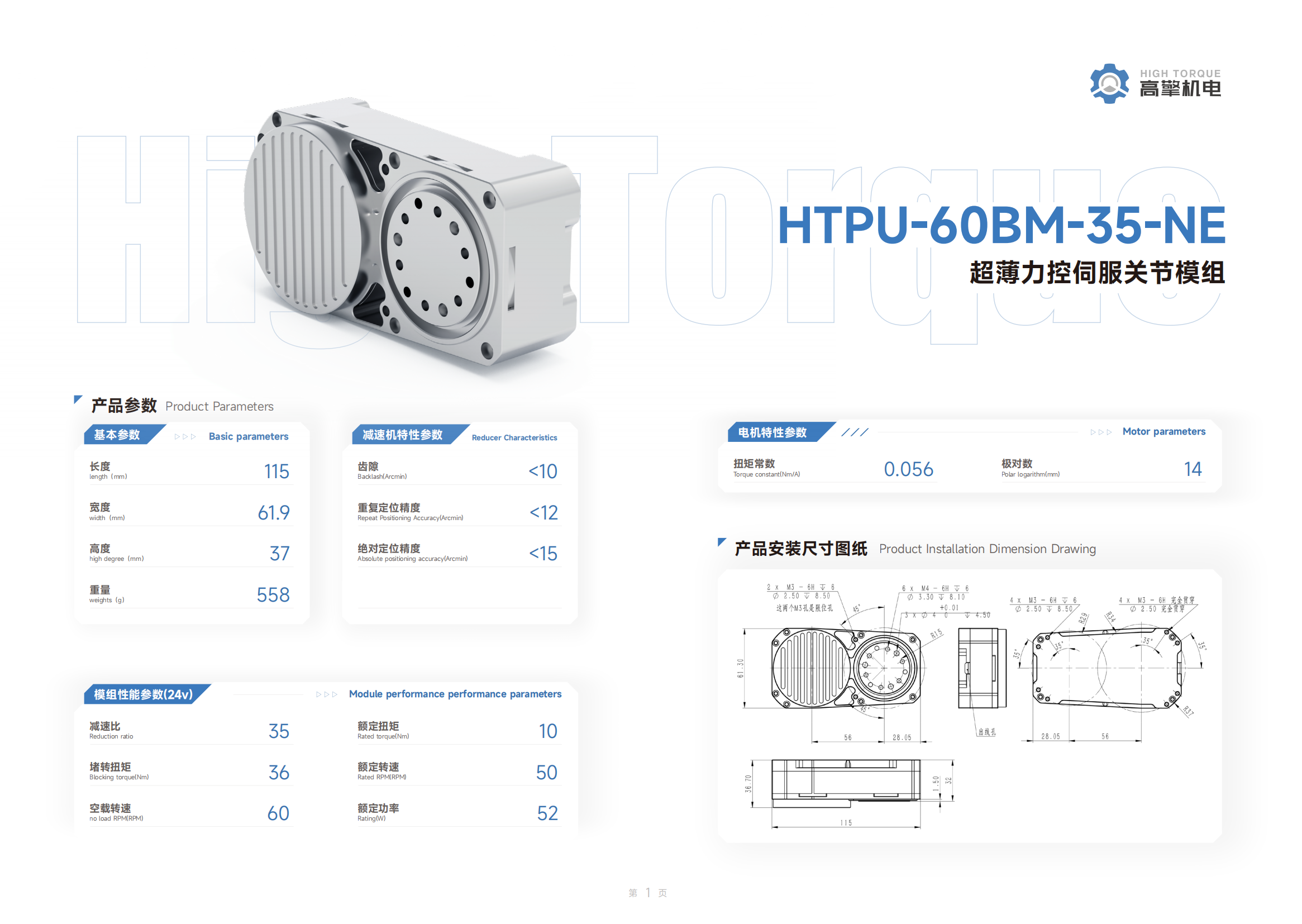

| Length | Width | Height | Weight | Reduction ratio |
|---|---|---|---|---|
| 115mm | 61.9mm | 37mm | 558g | 35 |
| Rated torque | Locked | Rated RPM | No load RPM | Rated Output Power |
|---|---|---|---|---|
| 10Nm | rotor torque-36Nm | 50rpm | 60rpm | 52W |
